Al&Afa Industrial 12 Line Laser Self Leveling Mapping Tool, Battery & Bag

Al&Afa Automatic Self Leveling 3x360 Degree Rotating 3D 12 Green Line Laser Level Mapping Tool & Carry Bag



Al&Afa:- "Where Quality Meets Affordability"



Al&Afa is One Of The Best Tools In The Market

If it does not say "Al&Afa", its not Al&Afa!!





12 Lines 3D Green Laser Level Self-Leveling 360 Degrees Horizontal And Vertical Cross Lines Green Laser Line With Battery



Horizontal And Vertical Beam 3D 12 Green Light Level Gauge Thick Line Self-leveling 360° Horizontal And Vertical Cross Super Strong Beam Level



The 3D laser level meter can emit visible laser horizontal and vertical lines for the automatic leveling separately or simultaneously. Provides accurate horizontal and vertical datums for indoor construction stakeout and calibration, easy to operate, and versatile. Suitable for flooring tile layout, paneling, wallpapering, stenciling, wainscoting, finish carpentry, wall stud layout and partition installation.



Output 12 laser lines for finer positioning, with self-leveling system, flexibility and stability.

360° rotatable base, and equipped with fine adjustment mechanism, can make the machine quickly find the target.

1/4" screw size for easy connection, it can be used with tripod to adjust the working height of the machine.

Comes with wall-mounted bracket, can be easily attached to the floor tiles, wall stickers, and ceilings, all 7mm pitch.

Waterproof and dustproof, suitable for both indoor and outdoor use.

Adopts optical glass, K9 material, fine transmission, with clear laser light.

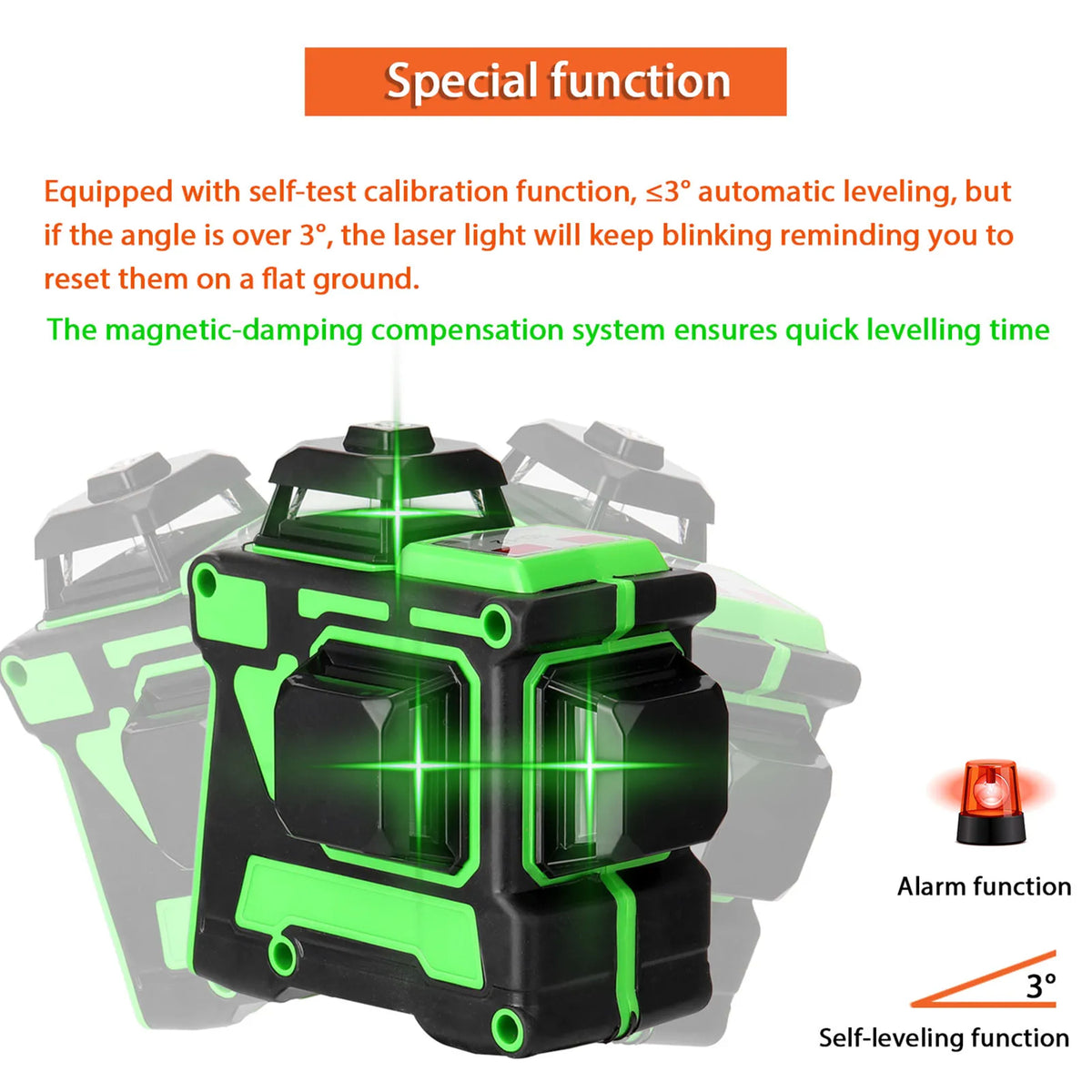

Equipped with self-test calibration function, ≤3° automatic leveling, but if the angle is over 3°, the laser light will keep blinking reminding you to reset them on a flat ground.

Rotation knob design, clockwise rotate to open it, anticlockwise rotate to close it.

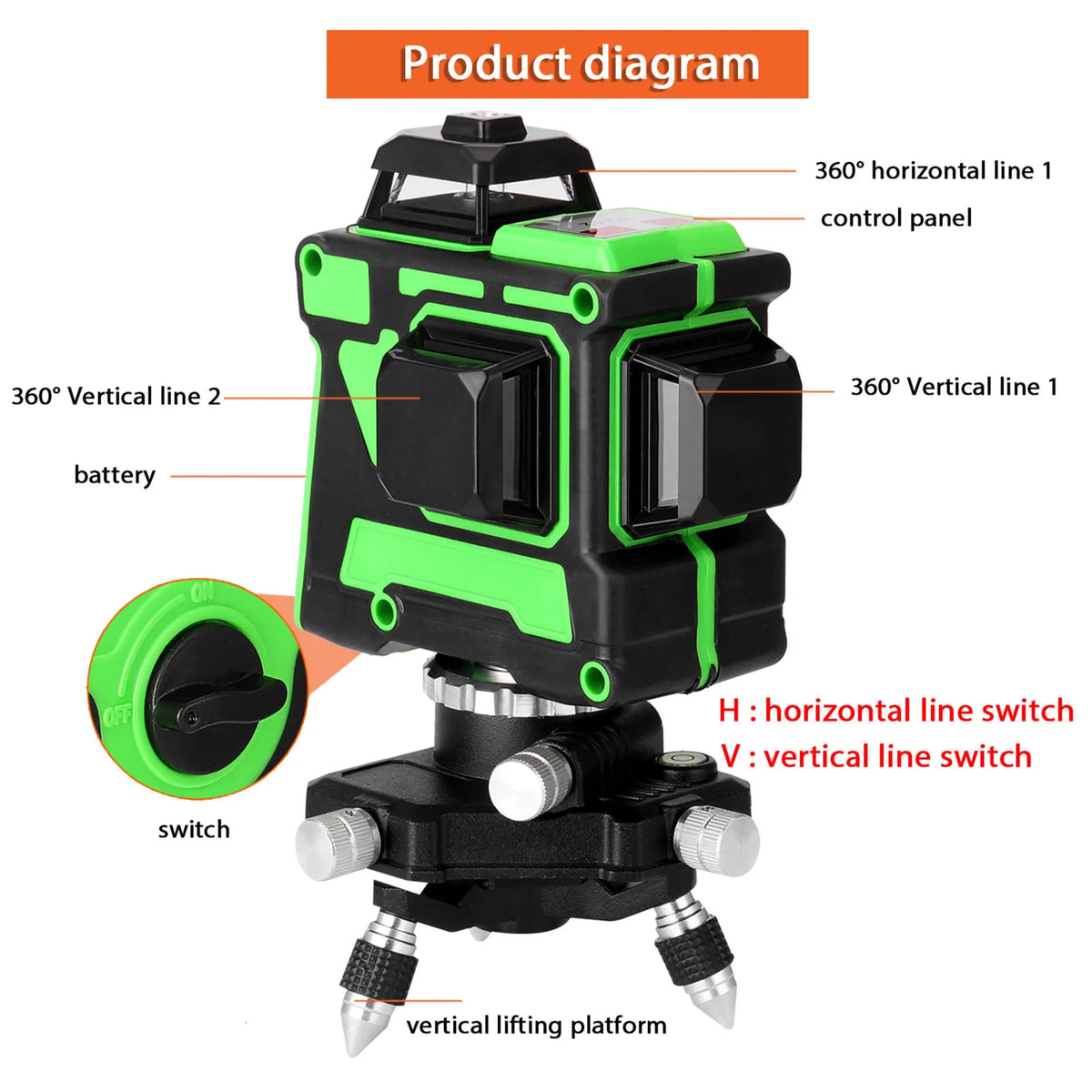

Two touching buttons design, one OUT/H button, one V button, horizontal line and vertical line with a clearly division.

The button is wear resistant, with high sensitive to switch the line mode quickly, and with comfortable hand feeling.

Easy to carry with the case, providing quick and convenient mobility and storage.



Specifications:

Main material: plastics + metal

Laser ray: 3D, 12 lines

Range: 30m

Laser lines accuracy: ±0.2mm/m

Laser light color: green light

Self-levelling-range: ±3°

Leveling time: <4s

Laser class: 2

Working temperature: -10°C to 40°C

Storage temperature: -20°C to 70°C

Moisture: 90%

Continuous time: 3-9 hours



Note: No Wireless Remote



3D 12 line laser wire fine positioning.

Flexibility and stability.

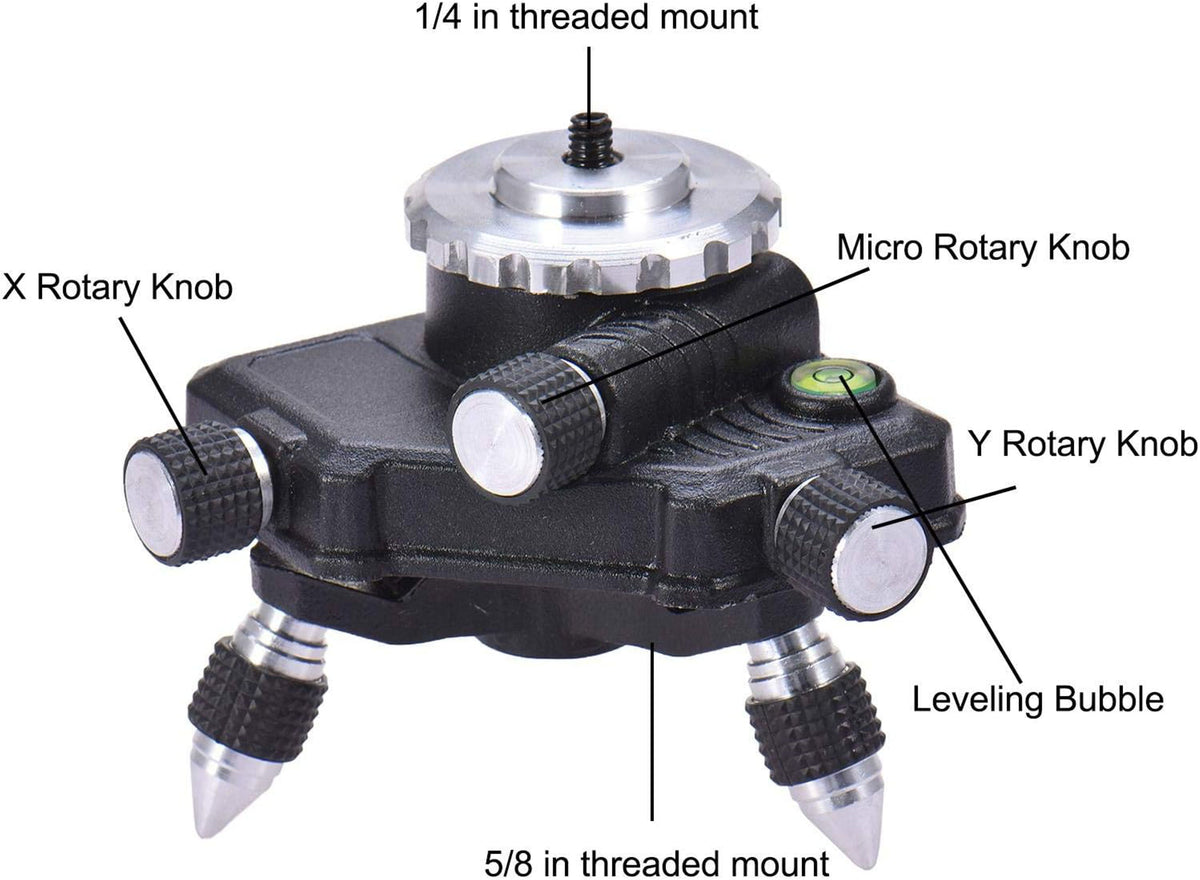

360°rotating base with fine tuning knob, quickly identify the target.

Waterproof, wear-resisting and feel exquisite, easy to operate.

The thickened metal base provides stable support and it is shockproof, shatter-proof.

Easy to carry with the case, providing quick and convenient mobility and storage.

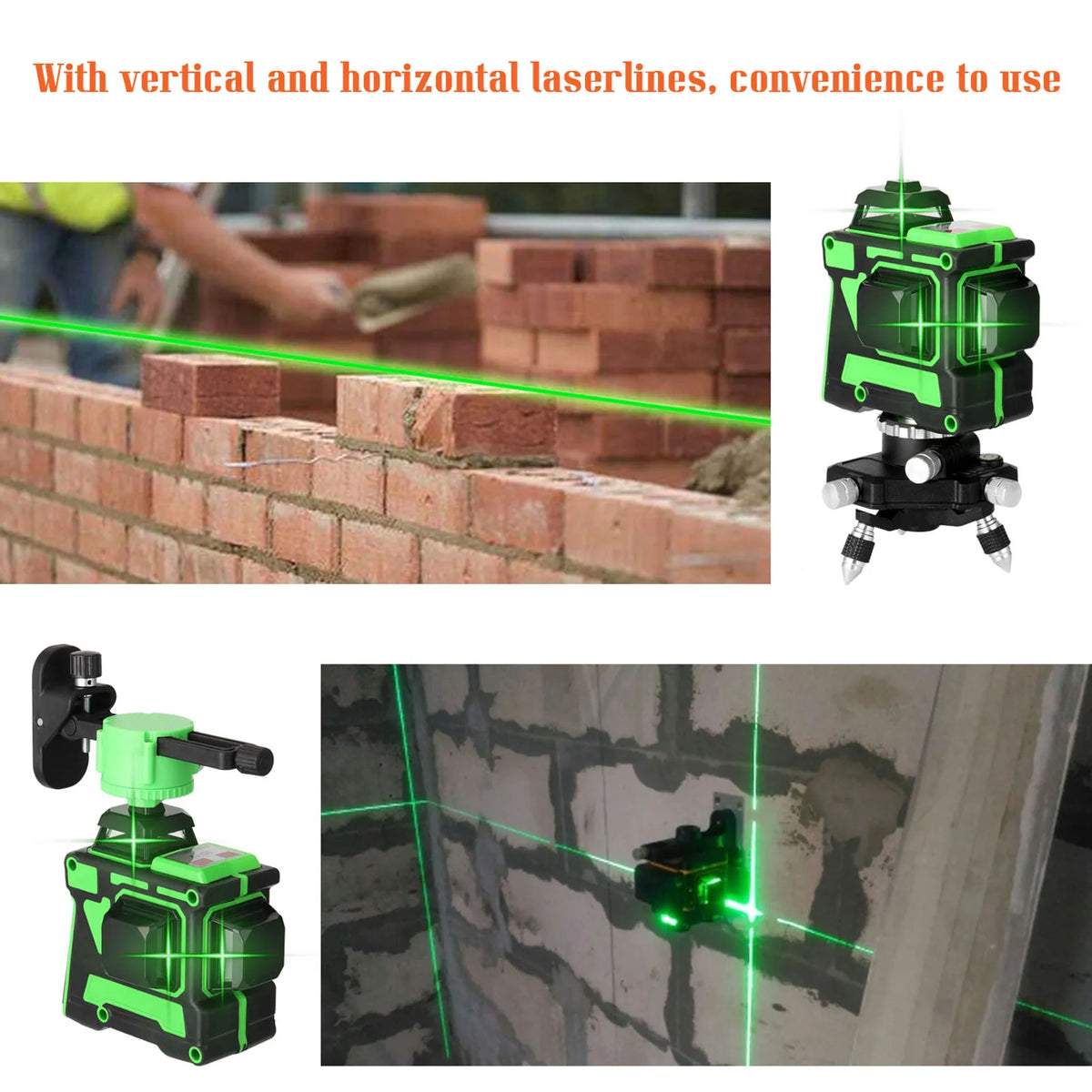

Wide applications for auxiliary tiles fixing, wall decoration, floor tiles fixing, stair handrails and more.

- Green Light Operating Temperature: 0℃~40℃





Note:

The laser output maker is located on the output hole.

Do not stare directly at the laser light.

Do not disassemble the instrument and perform internal repairs by yourself.

This instrument meets the laser radiation safety rating standard.

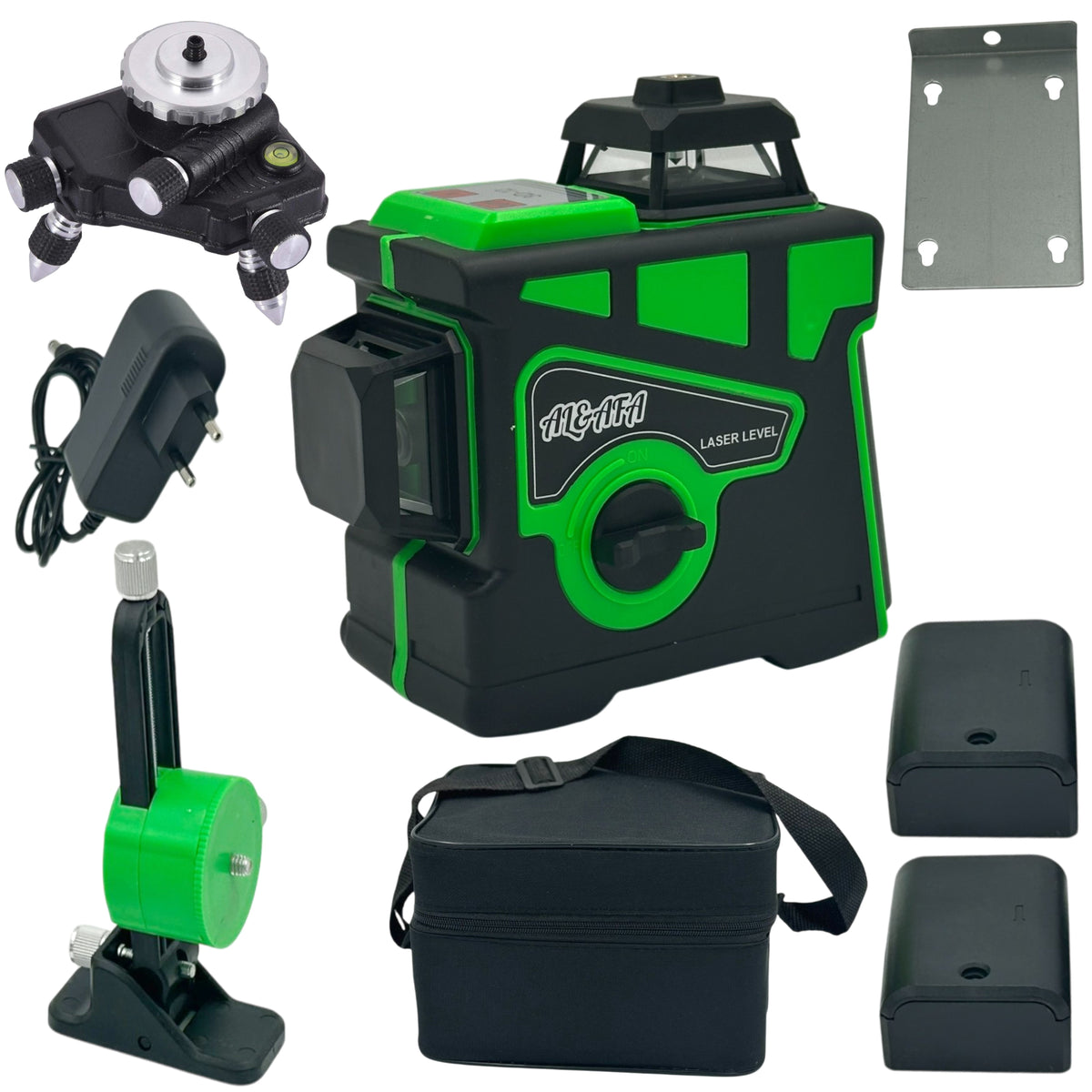

What’s in the Box:



Packing List:

1 x Laser Level

1 x Wall Mounted Bracket

1 x Rotating Base

1 x Iron Board

1 x Power Adapter

1 x Carrying Bag

1 x Manual
